Boiler For Mining Mongolia
- Capacity：300kw-42000kw, 0.5ton-60ton
- Fuel：Coal, Gas, Diesel, Electricity, Wood Biomass
- Heat Temperature：60°C-450°C
- Heat Medium：Hot Water, Saturated Steam, Superheated Steam
- Certificates：ISO CE ASME EAC DOSH
Yuanda Industrial Coal Boiler
We supply Coal steam boiler, Coal hot water boiler, Coal thermal oil boiler.
.jpg)

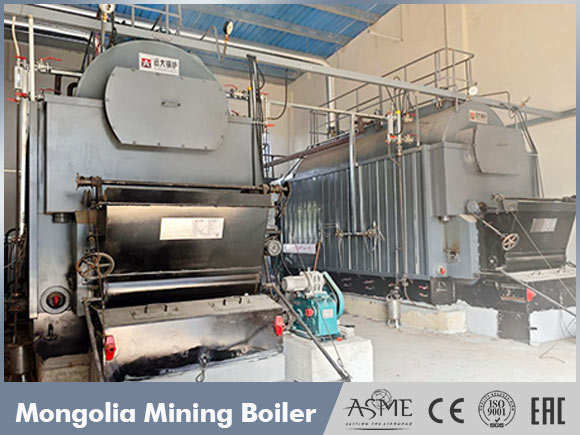

DZL Coal Boiler
DZL series chain grate coal boiler, it is horizontal three-pass water-tube & fire-tube boiler. DZL use chain grate combustion stoker for coal combustion efficiently, automatically.
1. It could burn coal, charcoal, briquette, biomass, wood, ricehusk, palm shells
2. Water-tube and fire tube use spairally corrugated tubes, enhance heat transferring
3. Furnace arch with upside down "α" flue gas flow, make coal/biomass burning sufficiently
4. Set steam-water separaing equipment, has high-quality & sufficient steam output
.jpg)
DZ Series Coal Boiler Advantages
1. Easy Installation: Fast-assembly leave from factory, easy to transport and install at site.
2. Full Combustion: Reasonable design of furnace structure with best suitable grate device, fuel fired fully.
3. High Efficiency Grate: Chain grate, easy operation, have lots of advantages compared to traditional grate.
4. High Security: Equip with water lack protection and over pressure protection devices, security and reliable.
5. Long Life and Durable: Advanced production processes, strict quality inspection, boiler life span above 20 years.
6. Environmental Protection and Low Noise: Low noise fans, dust remove device, meet local emission requirements.
Product Water Tube Boiler

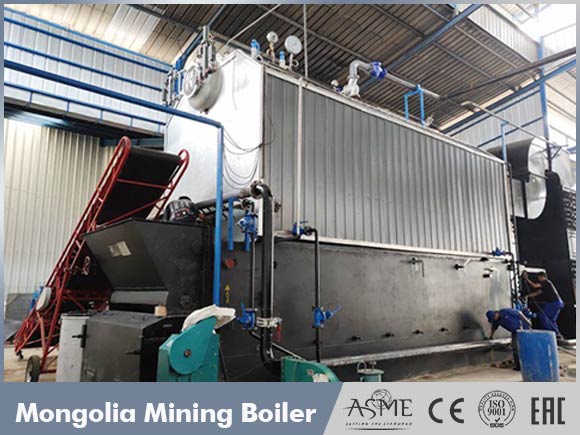

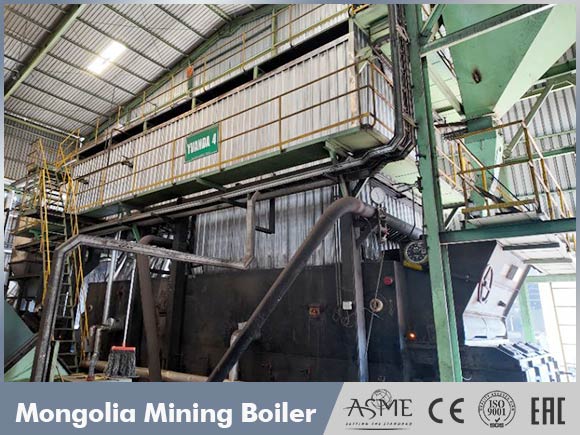

SZL Chain grate coal boiler, double drums A or D type layout, water membrane wall design, large furnace water tube boiler.
Product Oil Gas Fired Boiler
Global Sale Boilers Qualified With ISO CE ASME DOSH EAC Certificates.

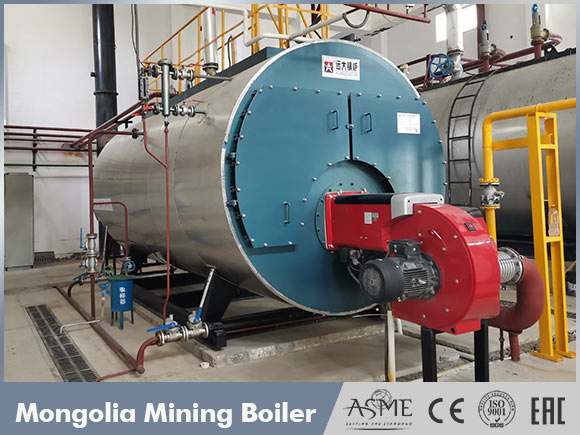

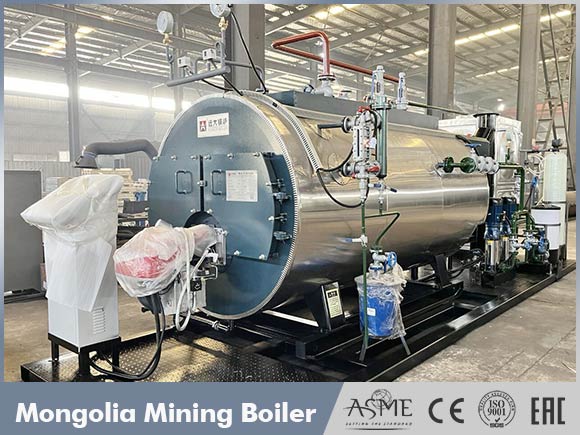

WNS fire tube boiler, horizontal type furnace combustion boiler with gas/oil burner. Its fire-tube boilers and flue gas three pass boiler, special wet back structure make sure long using lifespan.
WNS Horizontal Three Pass Wet Back Boiler
Fire Tube Boiler Advantages
1. 100% Safety Control Boiler & Strict Boiler Quality Control
1) All welding strictly meet the requirements of China NB/T 47014(JB/T 4708)
2) Anti Dry Heating Control System with double safety valves, double water level gauges, double secure of safe operation
3) With explosion-proof door with fire viewer, If burner failure ignition, this door can release the pressure out, protect the damage to welding parts
2. Energy Saving & High Efficiency
1) Spiral fire tube, the advanced technology, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing
2) Spirally corrugated furnace & Wet back structure, increased 10% heating area, avoid damaged by heat expansion, reduce the back tube sheet temperature and protect it from cracking
3. High Quality Steam-Wetness Below 1%
1) We equip a steam separation under the steam output port.
2) With continuous water feed function,Make the water level is stable instead of big differences
3) Bigger water tank design, boiler with bigger water volume and bigger steam space
Our Boiler Strict Quality Control
1. Strength calculation report with applied materials information.
2. Hydraulic test report: ensure the standard working pressure and safety.
3. 100%NDT(non-destructive inspection) report of steel plate, tube and welding rod.
4. 100% X-ray inspection report (welding seam): to ensure the quality of the entire boiler.
5. Third-party inspection report: by Zhoukou Institute of Special Equipment Inspection & Technical Research.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
| DZH/DZL Series Steam Boiler Technical Parameter Table | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| DZH1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 127.25 | 192.32 | 9 |
| DZL1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 3.15 | 113.34 | 190.42 | 13.5 |
| DZH2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.75 | 126.41 | 386.47 | 15 |
| DZL2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 4.77 | 106.34 | 393.77 | 22 |
| DZH4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞82 | 7.7 | 137.25 | 782.29 | 18.5 |
| DZL4 | 4 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.2 | 124.49 | 756.89 | 27.6 |
| DZH6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 7.4 | 146.83 | 1169.57 | 25 |
| DZL6 | 6 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 8.1 | 137.29 | 1148.68 | 35 |
| DZL8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞82 | 9.6 | 141.06 | 1602.44 | 38 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
