Philippines Steam Boiler
- Our Products：steam generator, steam boiler, hot water boiler, thermal oil boiler
- Capacity：50kg-80000kg, 60kw-35000kw
- Work Pressure：0.1-4.5mpa
- Application：For various industries production heat, commercial laundry/hotel, power generation.
Industrial Boiler Supplier In Philippines
Yuanda Boiler — Our boilers are widely used across multiple industries, including: Food & Beverage, Palm Oil Processing, Paper & Pulp, Textile, Plywood & Veneer, Asphalt & Bitumen, Packaging, Feed Mill, and more.
Diesel Gas Boiler
Fuel: diesel, lpg, gas, biogas, hydrogen, exhaust gas, heavy oil
Capacity: 100kg/hour to 80000kg/hour, 60kw to 35000kw

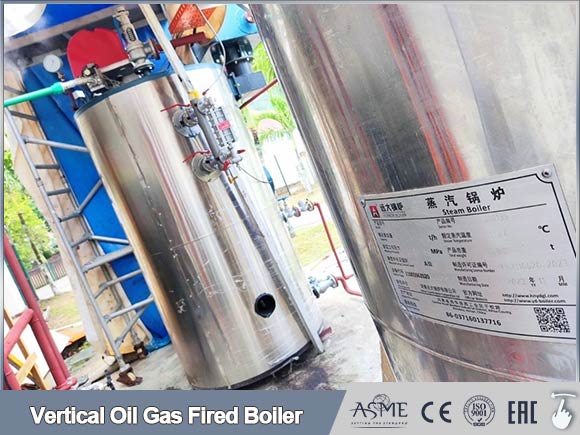

1 Vertical diesel/gas boiler includes vertical fire tube boilers and vertical water tube steam generators, designed for compact installation. It features a small footprint, fast steam generation, easy operation, and is ideal for sites with limited space and flexible steam demand.

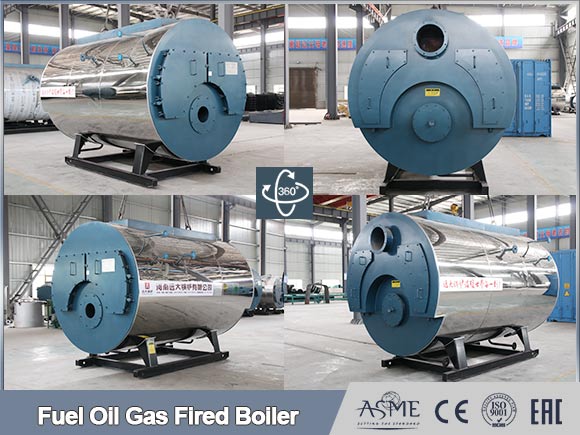

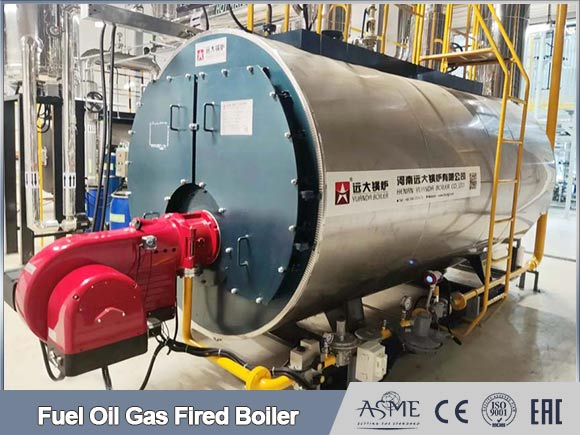

2 Horizontal WNS series fire tube boiler features a three-pass corrugated furnace and wet-back structure for enhanced heat transfer, higher thermal efficiency, and lower fuel consumption. It offers stable and reliable operation, and can be customized as mobile containerized or skid-mounted units, fully pre-installed in the factory for quick and easy on-site deployment.
Coal Biomass Wood Boiler
Fuel: coal, wood, biomass, ricehusk, bagasse, palm kernel shell, palm fibre, empty fruit bunch...
Capacity: 100kg/hour to 80000kg/hour, 60kw to 35000kw
Feeding system: manual, automatic
Combustion technology: chain grate, reciprocating grate, fixed grate, travelling grate, bubbling bed, fluidized bed

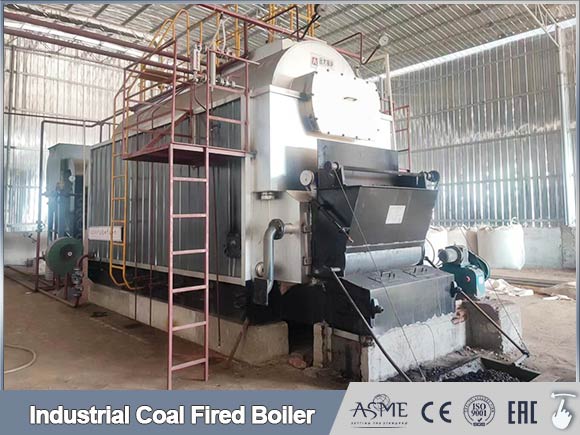

1 DZL / DZH series water-tube and fire-tube single drum stoker boiler, with compact horizontal design with chain grate combustion, suitable for coal and biomass fuels. It offers stable operation, high thermal efficiency, easy installation, and low operating costs.

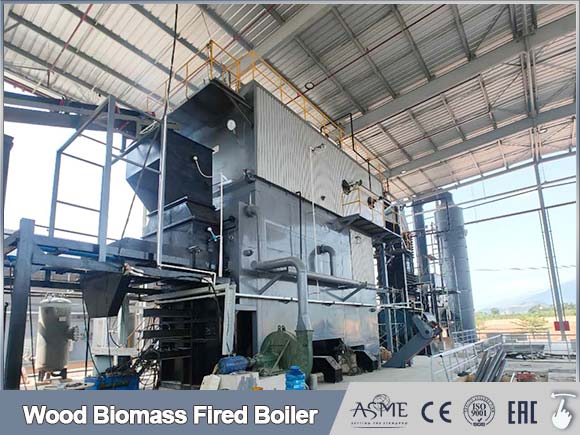

2 SZL / SZW series water tube boiler features a double-drum structure arranged in “D” or “A” type, with full water membrane wall design for enhanced sealing and heat transfer. It ensures high efficiency, strong load adaptability, and stable operation, suitable for coal, biomass, and other solid fuels.
Electric Boiler
Types: steam generator, steam boiler, hot water boiler, thermal oil boiler
Structure: vertical, horizontal
Industrial Electric Boiler. Fully automatic integrated stainless steel tube heating boiler, no pollution no noise, convenient installation, small occupation, high thermal efficiency.
Thermal Oil Boiler
Heating Oil: 200°C-350°C
Fuel Options: diesel, lpg gas, electric, coal, wood biomass
Capacity: 50kw-35000kw, 100,000kcal to 18 million kcal
Thermal oil boiler is a high-efficiency heating system that uses heat transfer oil as the medium to provide stable high-temperature heat under low pressure. It ensures safe operation, precise temperature control, and energy saving, widely used in chemical, textile, food, and industrial processing industries.
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| Gas Oil Fired Steam Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| WNS0.5 | 0.5 | 0.1mpa-3.8mpa | 100°C-450°C | 20°C/104°C | ＞98 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | ＞98 | 64.5 | 70.1 | 5.5 | |||
| WNS2 | 2 | ＞98 | 129.3 | 140.3 | 8 | |||
| WNS3 | 3 | ＞98 | 192.9 | 212.1 | 10.7 | |||
| WNS4 | 4 | ＞98 | 258.2 | 283.4 | 11.6 | |||
| WNS6 | 6 | ＞98 | 388.6 | 424.2 | 17.5 | |||
| WNS8 | 8 | ＞98 | 514.6 | 566.3 | 22.5 | |||
| WNS10 | 10 | ＞98 | 641.7 | 707.8 | 26.8 | |||
| WNS15 | 15 | ＞98 | 960.1 | 1061.7 | 35.2 | |||
| WNS20 | 20 | ＞98 | 1276.2 | 1415.8 | 45.5 | |||
| SZS10 | 10 | ＞98 | 618 | 660 | 36 | |||
| SZS15 | 15 | ＞98 | 927 | 987 | 45 | |||
| SZS20 | 20 | ＞98 | 1256 | 1316 | 52.6 | |||
| SZS25 | 25 | ＞98 | 1545 | 1660 | 55.3 | |||
| SZS30 | 30 | ＞98 | 1856 | 1981 | 63.7 | |||
| SZS40 | 40 | ＞98 | 2470 | 2630 | 77.4 | |||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
