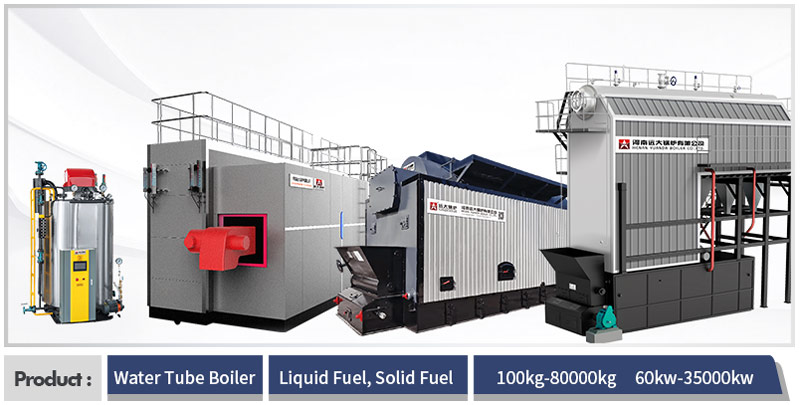

Water Tube Boiler
- Our Products：Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Capacity：100kg-50000kg, 100kw-35000kw
- Fuel：Gas lpg Oil diesel; coal biomass wood pellets, solid waste
- Work Pressure：1bar-38bar
- Manufacture Standard ：ISO, CE, ASME, DOSH, EAC

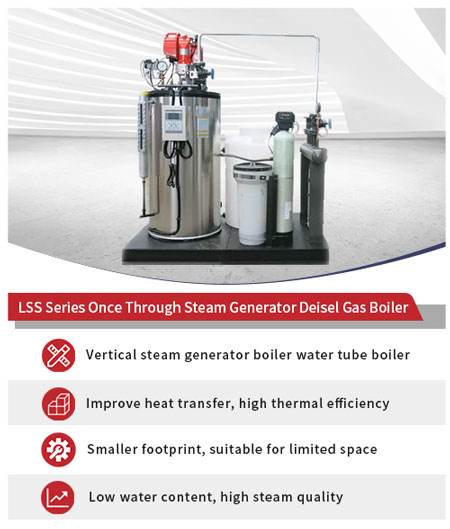

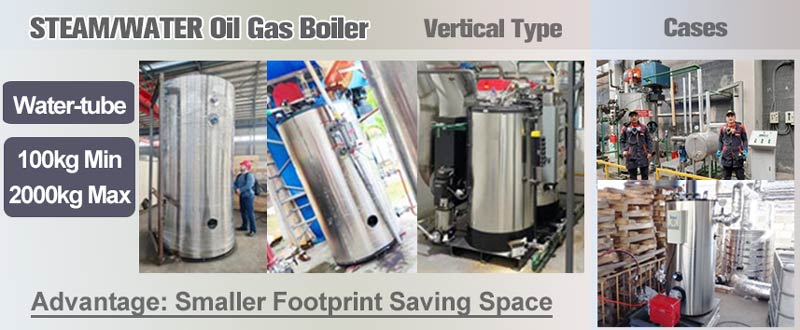

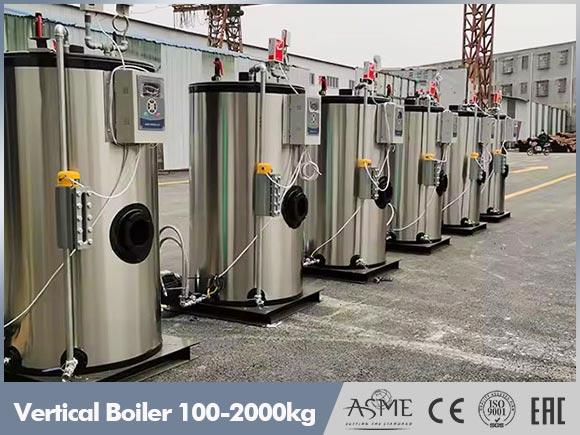

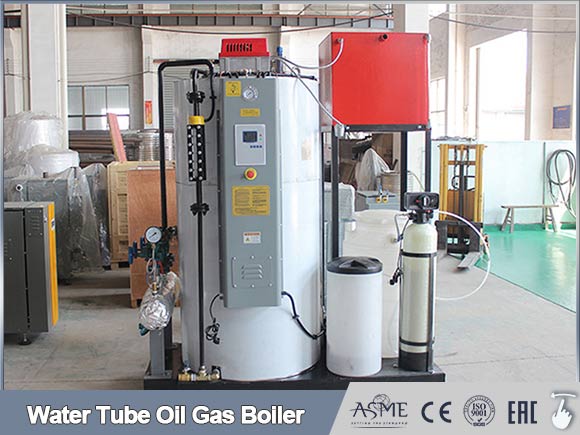

Water Tube Steam Generator 100kg-1000kg
Capacity in 100kg-2000kg/hour 70kw-1400kw
LSS vertical water tube oil gas fired boiler is once-through three-pass structure boiler,temperature rises up quickly, and thermal efficiency is high. The flame has two stage, convenient for adjustment.

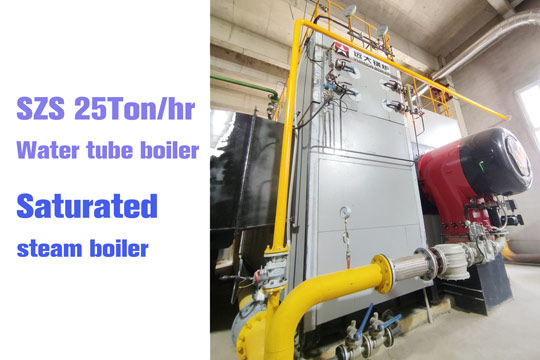

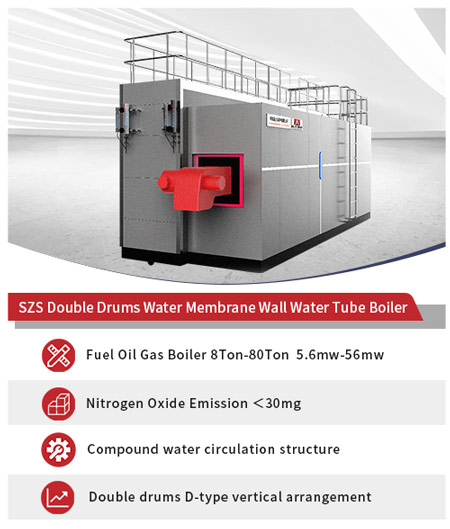

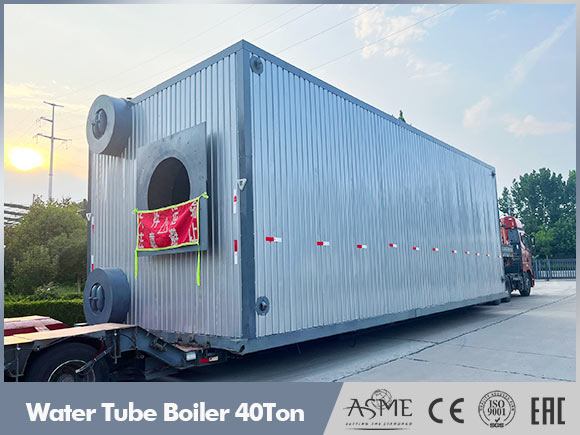

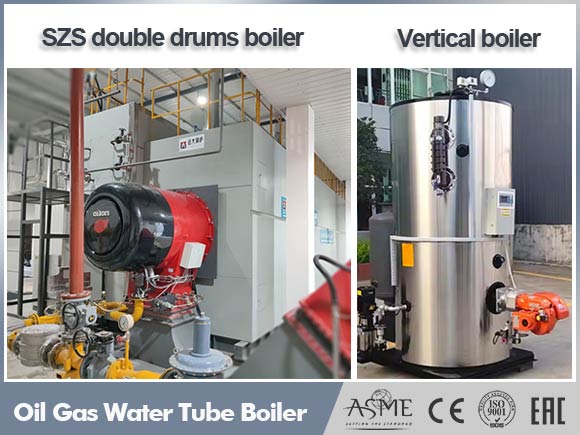

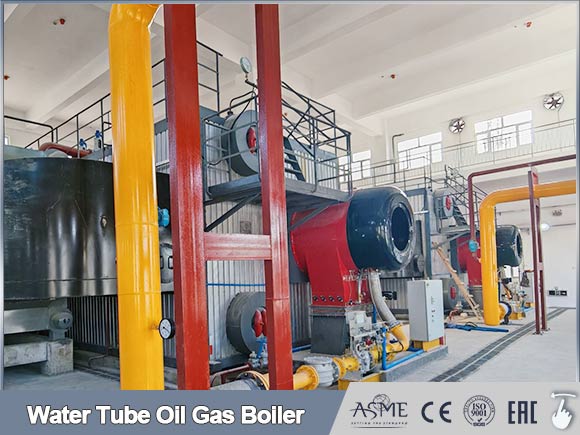

SZS Water Tube Oil Gas Boiler
Capacity in 8ton-80ton/hour
SZS series water tube oil gas boiler, has double drums "D-type" vertical arrangement, full-membrane type wall structure, reasonable and compact layout, realize large-capacity boiler overall quick installation, less investment in boiler house infrasturcture and short installation period.
Its D-type arrangement and membrane-wall construction provide a robust and efficient heat-transfer system while minimizing the overall footprint. The optimized design allows large-capacity boilers to be factory-assembled or delivered in modular sections, significantly reducing on-site installation work.
With a compact structure and fast installation, the SZS boiler can help reduce boiler house construction requirements, shorten the installation period and lower overall project investment.

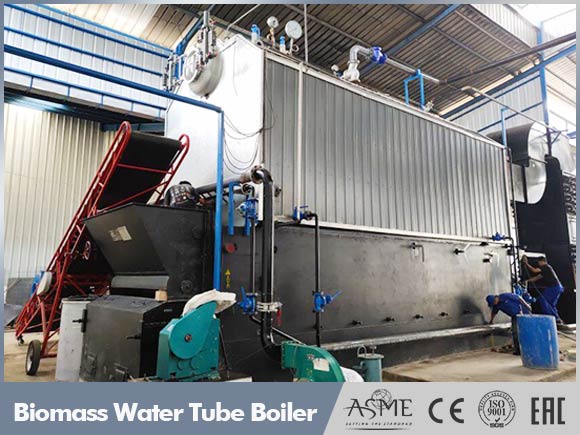

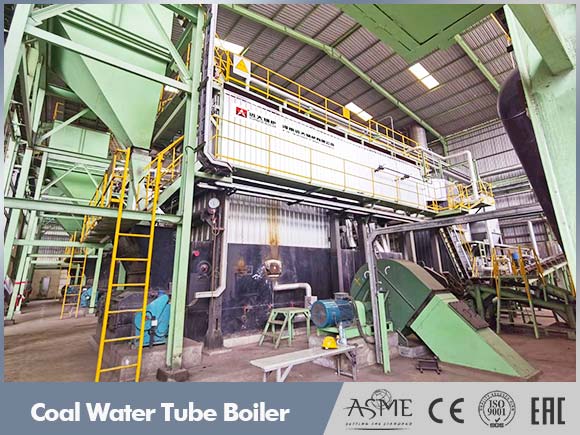

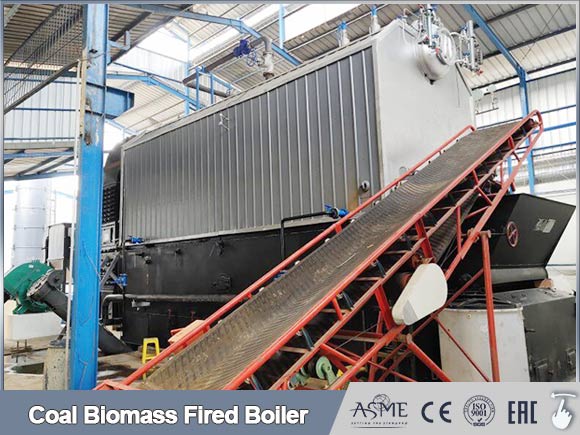

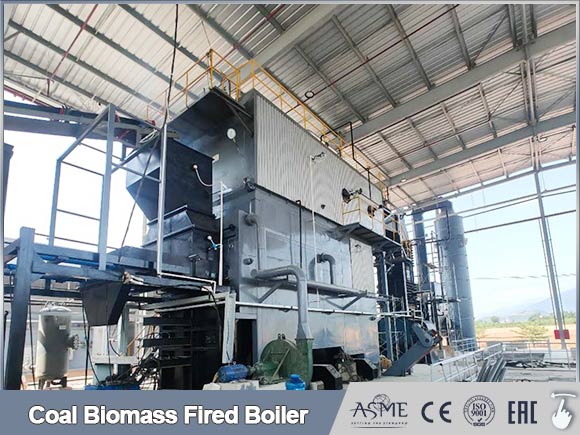

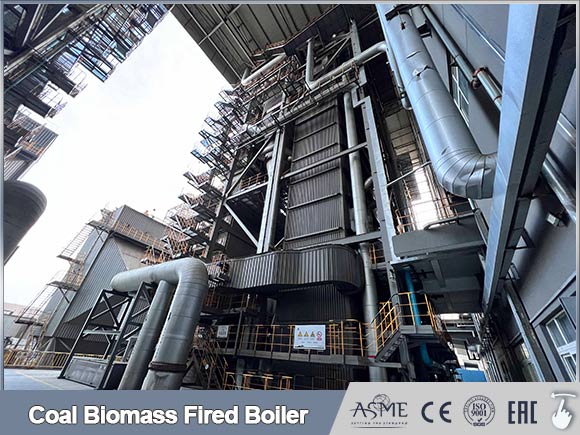

Coal Biomass Fired Water Tube boiler

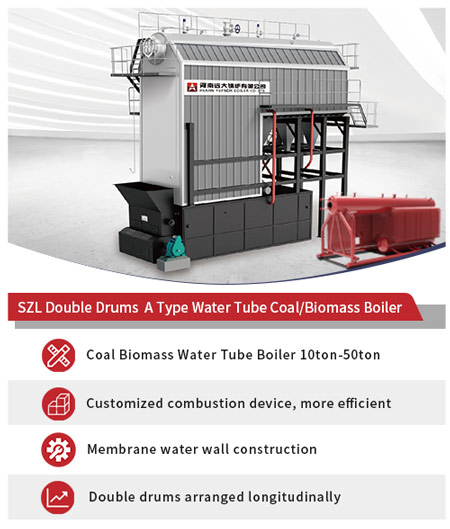

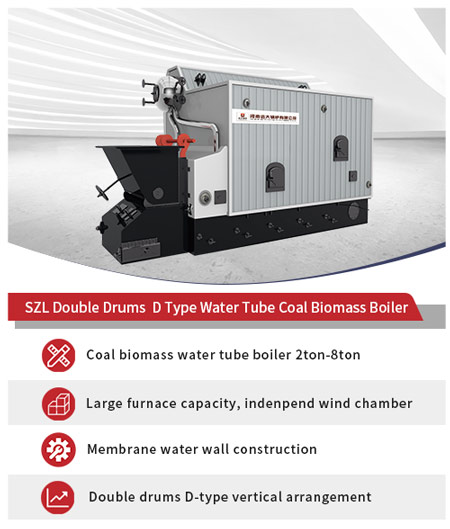

SZL/SZW Series double drums water tube boiler, "D" or "A" layout structure, with chain grate or reciprocating grate stoker.
SZL/SZW series biomass fired steam boiler is a water tube steam boiler specially designed for industrial applications using renewable biomass fuels. It adopts a double-drum, water-tube structure with membrane water walls and a chain grate stoker/reciprocating grate stoker, providing reliable combustion, efficient heat transfer, and stable steam output.
Typecial fuel: biomass, coal, wood, rice husk, bagasse, palm kernel shell palm fibre, agro waste.

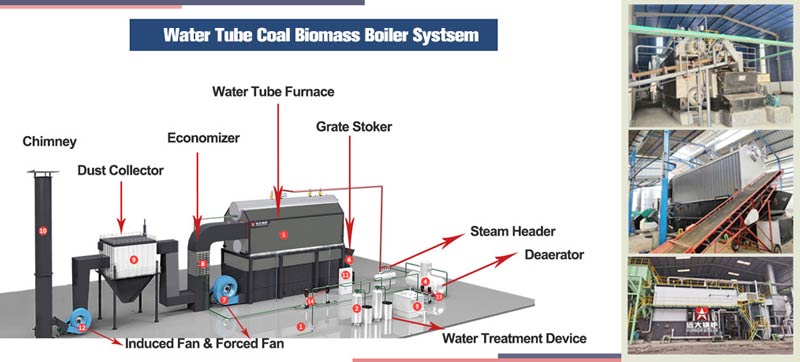

Customized Coal Biomass Boiler System
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 68 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 132 countries all over the world, trustable quality & services for lifespan.
| Horizontal Water Tube Oil Gas Steam Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| SZS10 | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 618 | 660 | 36 |
| SZS15 | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 927 | 987 | 45 |
| SZS20 | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1256 | 1316 | 52.6 |
| SZS25 | 25 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1545 | 1660 | 55.3 |
| SZS30 | 30 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 1856 | 1981 | 63.7 |
| SZS40 | 40 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞98 | 2470 | 2630 | 77.4 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
