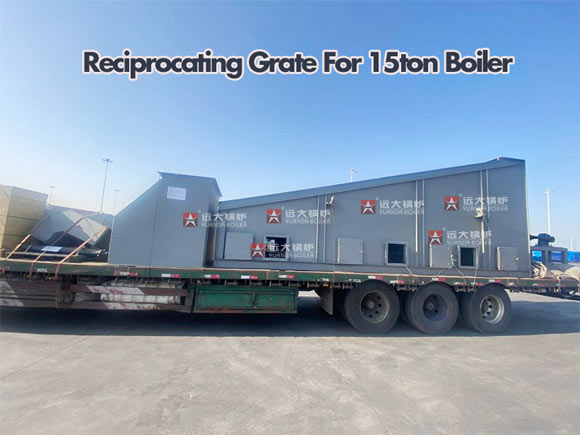

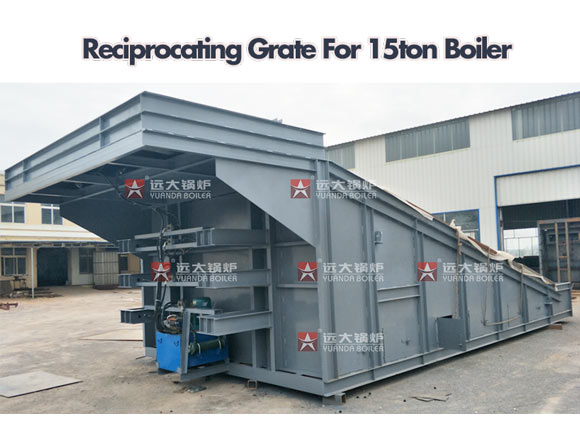

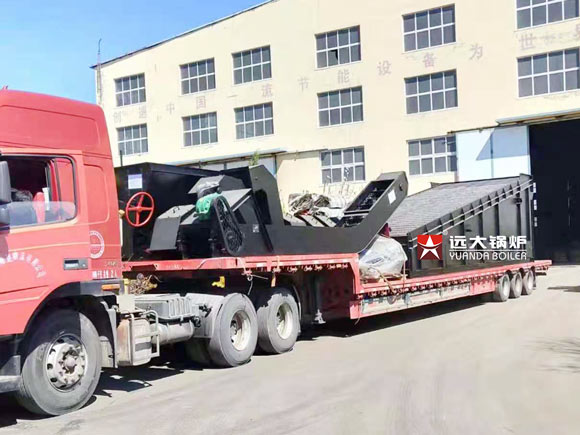

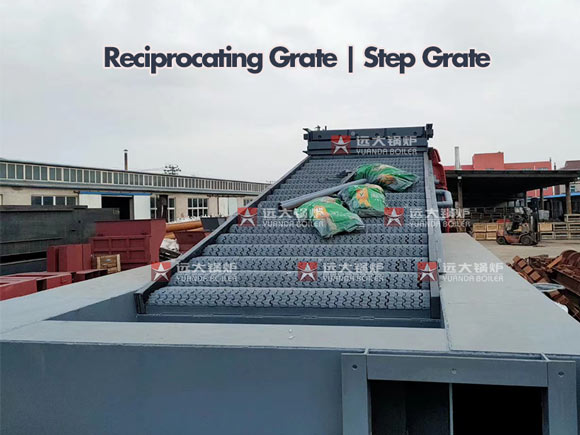

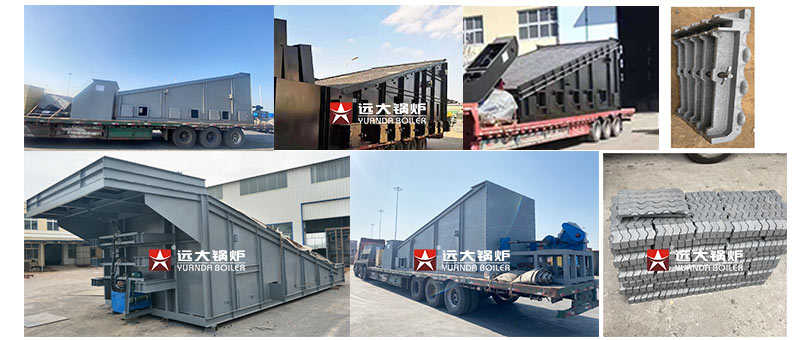

Reciprocating Grate Step Grate Stoker
- In Biomass Boiler：4ton 6ton 8ton 10ton 15ton 20ton 30ton
- Available：Biomass Waste, Wood Waste, Bagasse, Coconuts Shells, Palm Kernel Shells, etc.
- Manufacturer：China
- Contact Information：Email: shirley@yuanda-boiler.com Wechat/Whatsapp: 0086 18236986701
Reciprocating Grate Introduction
When we choose Reciprocating Grate, we need know biomass waste characteristics
1. Lower heating value of biomass fuel is different due to different moisture content, while higher heating value is similar. The fuel accumulated outdoors has a moisture content ranging from 12% to 45%.
2. Biomass fuel has high volatile content. Biomass fuel starts pyrolysis when temperature exceeds 170°C, 70%-80% of volatile matter is precipitated, including H2O, CO and CH4.
3. Biomass fuel has no fixed ash melting point. Al, Fe, Ca, Mg and other oxides in the ash increases the ash melting point. However, high K and Na content makes the ash melting point lower than that of coal.
4. Biomass fuel ash has a low density and is easier to be carried by the flue gas. In addition, slagging is easy to form on the convective tube bundle, which affects the heat transfer effect.
5. The overall dimensions of biomass fuel are irregular.

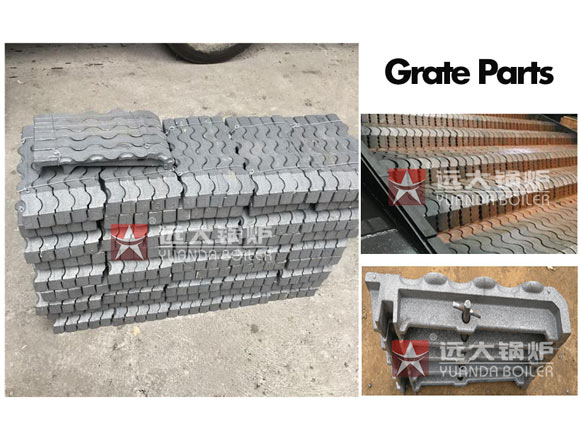

6. The grate is air cooled and divided into three to five zones per lane with one to three lanes in total. The grate bars’ speed and the primary air supply are regulated for each grate zone individually. The individualized control of each zone offers an optimized combustion. The grate bars are made of high-alloyed cast steel and supplied pre-mounted. The grate is function tested before delivery.
Any inquiry, please contact us by shirley@yuanda-boiler.com
DZW Reciprocating Grate Boiler (2ton-8ton)
- DZW series package boilers are horizontal three-pass water & fire tube boilers. Compact structure, scientific construction technology, precise manufacture, high technical maturity and stable operation.
- Strong steam output power
- Easy installation & operation
- Large stove furnace
- Automatic feeding system
Water Tube Boiler (6–75ton)
- SZW series boiler adopts double-drum offset hearth (D or A type layout) with unique furnace design, suitable for biomass fuel, ensuring complete combustion, energy conservation and environmental protection.
- Membrane water wall
- Unique boiler design patent
- Large furnace & wide fuel fire
- Independent wind chamber
Videos Yuanda Projects
View More by https://www.youtube.com/@yuandaboiler
About us Yuanda Boiler
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
