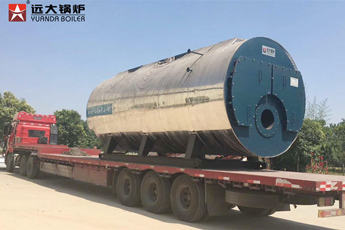

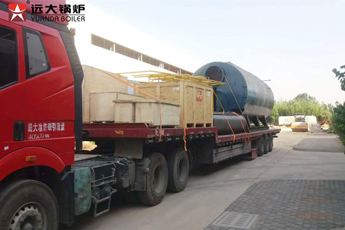

16 bar pressure 6 ton gas/lpg fired steam boiler in Ecuador

16 bar pressure 6 ton gas/lpg fired steam boiler in Ecuador
Boiler structure characteristics
1, horizontal all wet back structure, the overall muscle Cou layout, the beauty is generous.
2, improve the body outlet flue gas temperature, reduce the low boiler load the runtime of harden corrosion.
3, increase the length of the furnace, reduces the furnace outlet smoke temperature, improve the hot water boiler combustion chamber back tube sheet of working environment.
4, waveform furnace, and the reasonable application of strengthening heat transfer element threaded pipe. Not only strengthen the turbulent flow in high temperature flue gas heat transfer, and the effective absorption from the cold.
