Low Pressure Steam Boiler
- Fuel：gas, diesel, lpg; electric; coal, wood, biomass
- Capacity：13kg-50,000kg
- Pressure ：1bar-38bar 0.1mpa-3.8mpa
- Application：industries such food beverage dairy packaging paper garments textile chemical refinery laundry hotel...
- Certificates：ISO, CE PED, ASME, EAC, DOSH, CRN
Low Pressure Boiler
Boiler Pressure at 1bar to 38bar, 0.1mpa to 3.8mpa.

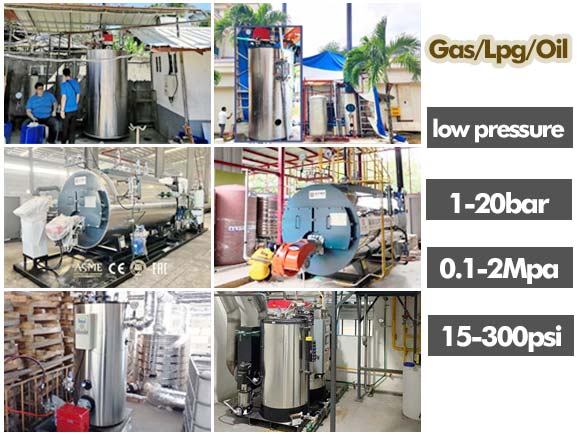

Option Low Pressure Diesel Gas Boiler
1. Vertical gas/diesel fired steam and hot water boiler, vertical type low pressure (1bar-15bar) two pass fire tube boilers, applicable to various fuels such as diesel, natural gas, and so on. The boiler has advantages of low cost, smaller area occupied, and quick steam generation.
2. WNS Series Fire Tube Boiler is a horizontal, three-pass, wet-back boiler designed for high efficiency, stable operation and easy maintenance.
With flexible component-shipped or skid-mounted configurations, the boiler can be adapted to different transportation and installation requirements. Optional auxiliary equipment is also available to provide a complete boiler system solution.

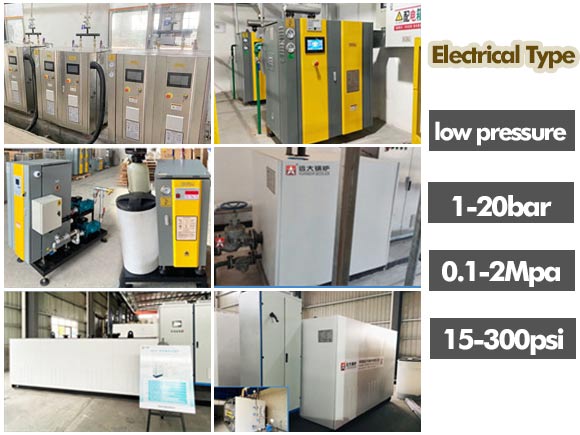

Option Low Pressure Electric Boiler
Vertical steam generator boiler, in 100kg 200kg 300kg 500kg. Small size, portable with wheels, easy to install & operate. Fast steam & Clean steam generating & low electricity cost.
Horizontal electric steam boiler, Fully automatic integrated stainless steel tube heating boiler, no pollution no noise, convenient installation, small occupation, high thermal efficiency.
Yuanda Electric Boiler Projects
Option Low Pressure Coal Biomass Boiler
Available to burn Coal, Woodchips, Biomass Pellets, Ricehusk, etc.

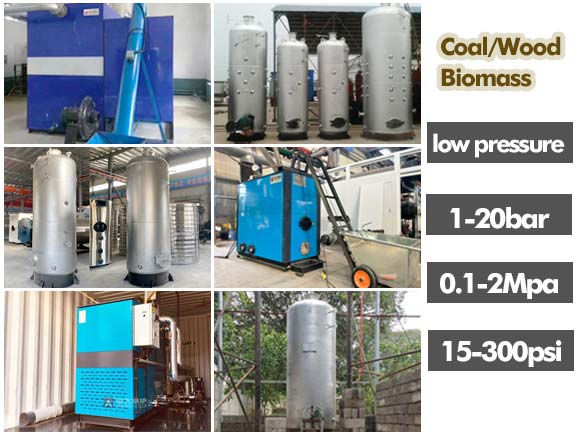

1. Vertical wood coal steam boiler, in 100kg 200kg 300kg 500kg 1000kg. Manual feeding coal woodchips fired steam boiler.

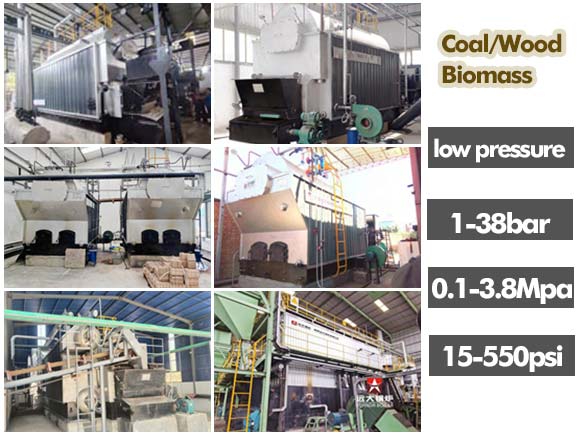

2. 1ton-75ton coal biomass boiler, widely for factory productions heat & power generation.
Customized Industrial Boiler Solutions
Looking For A Reliable Boiler Manufacturer?
1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.
2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.
3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.
Professional Boiler Solution Support
Our experienced engineer team can provide:
1. Boiler model selection according to your project
2. Steam capacity and fuel consumption calculation
3. Boiler room layout suggestions
4. Technical drawings and datasheets
5. Chimney and auxiliary equipment recommendation
6. Container loading and shipping arrangement
7. Overseas installation and commissioning guidance
8. After-sales technical support
Note: OEM and customized boiler manufacturing services are available.
Contact Email: shirley@yuanda-boiler.com
| Gas Oil Fired Steam Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| WNS0.5 | 0.5 | 0.1mpa-3.8mpa | 100°C-450°C | 20°C/104°C | ＞98 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | ＞98 | 64.5 | 70.1 | 5.5 | |||
| WNS2 | 2 | ＞98 | 129.3 | 140.3 | 8 | |||
| WNS3 | 3 | ＞98 | 192.9 | 212.1 | 10.7 | |||
| WNS4 | 4 | ＞98 | 258.2 | 283.4 | 11.6 | |||
| WNS6 | 6 | ＞98 | 388.6 | 424.2 | 17.5 | |||
| WNS8 | 8 | ＞98 | 514.6 | 566.3 | 22.5 | |||
| WNS10 | 10 | ＞98 | 641.7 | 707.8 | 26.8 | |||
| WNS15 | 15 | ＞98 | 960.1 | 1061.7 | 35.2 | |||
| WNS20 | 20 | ＞98 | 1276.2 | 1415.8 | 45.5 | |||
| SZS10 | 10 | ＞98 | 618 | 660 | 36 | |||
| SZS15 | 15 | ＞98 | 927 | 987 | 45 | |||
| SZS20 | 20 | ＞98 | 1256 | 1316 | 52.6 | |||
| SZS25 | 25 | ＞98 | 1545 | 1660 | 55.3 | |||
| SZS30 | 30 | ＞98 | 1856 | 1981 | 63.7 | |||
| SZS40 | 40 | ＞98 | 2470 | 2630 | 77.4 | |||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
