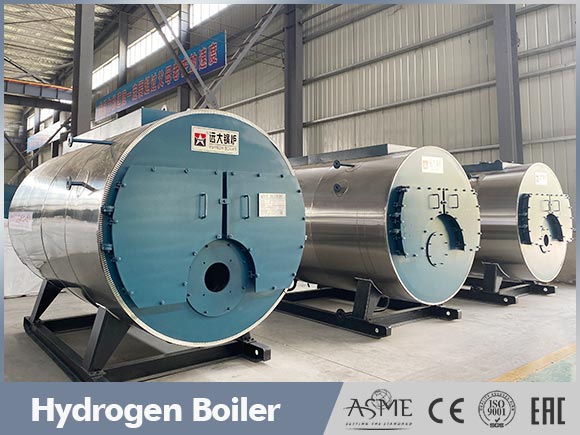

Hydrogen Boiler
- Steam Capacity:1ton-20ton
- Heat Power:700kw-14000kw
- Pressure:0-3.8Mpa
- Structure:Horizontal, Fire Tube, Three Pass, Wet Back
- Certificates:ISO CE ASME EAC
Hydrogen Boiler #SteamBoiler #HotWaterBoiler
Hydrogen can be a very clean alternative to fossil fuels, When burned, it will produce only water/steam and heat, don't produce greenhouse gas CO2, help recuding carbon emissions and more cleaner. The only pollutant from the hydrogen combustion is NOx.

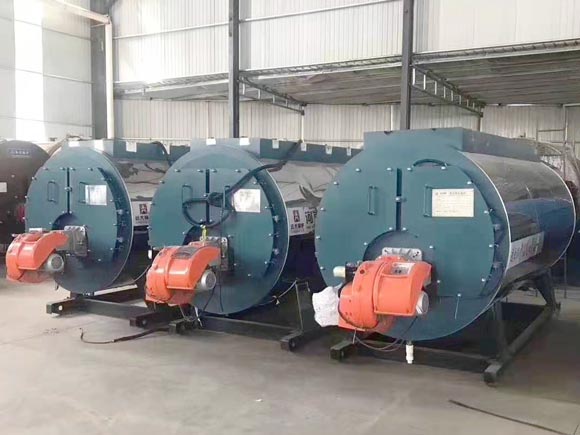

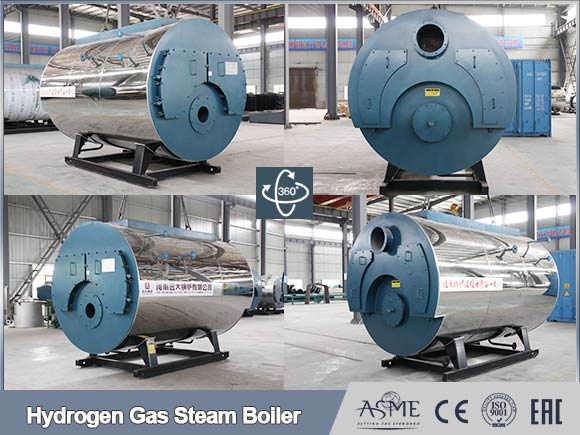

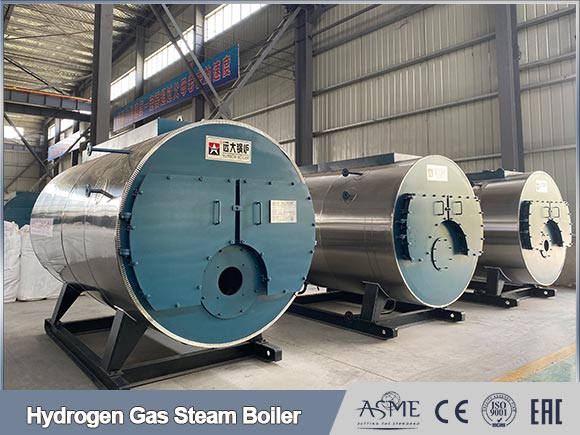

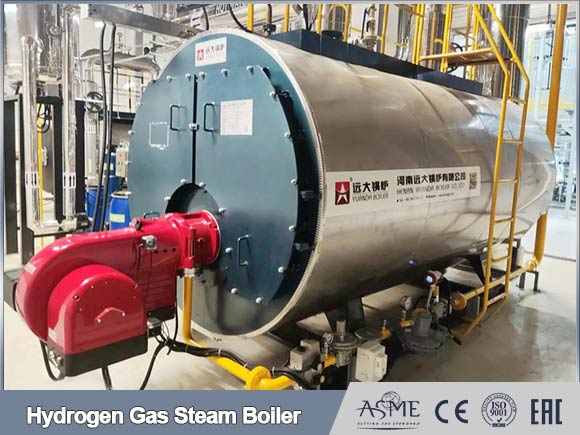

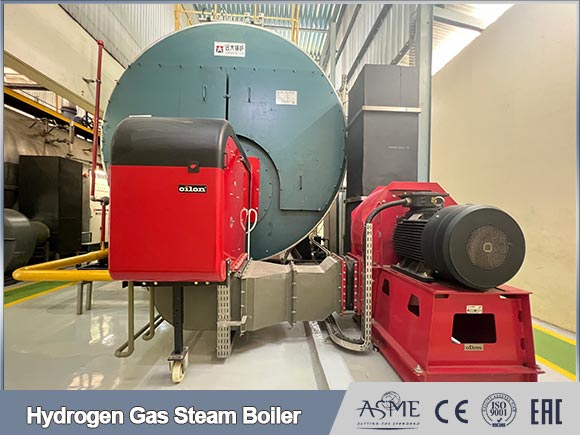

WNS fire tube hydrogen boiler, horizontal type furnace combustion boiler with hydrogen burner. Its fire-tube boilers and flue gas three pass boiler, special wet back structure make sure long using lifespan.

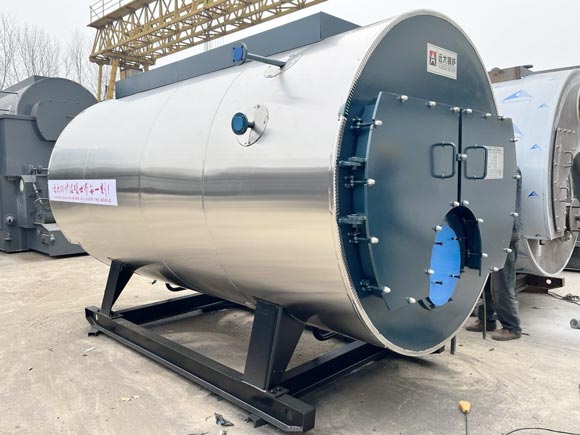

Horizontal Three Pass Wet Back Boiler
Advantages WNS boiler features
1. 100% Safety Control Boiler & Strict Boiler Quality Control
1) All welding strictly meet the requirements of China NB/T 47014(JB/T 4708)
2) Anti Dry Heating Control System with double safety valves, double water level gauges, double secure of safe operation
3) With explosion-proof door with fire viewer, If burner failure ignition, this door can release the pressure out, protect the damage to welding parts
2. Energy Saving & High Efficiency
1) Spiral fire tube, the advanced technology, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing
2) Spirally corrugated furnace & Wet back structure, increased 10% heating area, avoid damaged by heat expansion, reduce the back tube sheet temperature and protect it from cracking
3. High Quality Steam-Wetness Below 1%
1) We equip a steam separation under the steam output port.
2) With continuous water feed function,Make the water level is stable instead of big differences
3) Bigger water tank design, boiler with bigger water volume and bigger steam space
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
2. Qualified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 132 countries all over the world, trustable quality & services for lifespan.
Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
---|---|---|---|---|---|---|---|---|---|
light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
WNS0.5 | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 32.5 | 35.7 | 3.5 |
WNS1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 64.5 | 70.1 | 5.5 |
WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 129.3 | 140.3 | 8 |
WNS3 | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 192.9 | 212.1 | 10.7 |
WNS4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 258.2 | 283.4 | 11.6 |
WNS6 | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 388.6 | 424.2 | 17.5 |
WNS8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 60-75 | 514.6 | 566.3 | 22.5 |
WNS10 | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 60-75 | 641.7 | 707.8 | 26.8 |
WNS15 | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 60-75 | 960.1 | 1061.7 | 35.2 |
WNS20 | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
