biomass boiler
  • biomass boiler

Biomass Steam/Hot Water Boiler

  • Capacity:0.1t/h-50t/h, 0.35mw-35mw
  • Pressure:0.1MPa-3.8MPa
  • Fuel:Biomass, coal, wood, ricehusk, shells, pellets, bagasse, waste, jhute
  • Industry:Foods, Garment, Textile, Paper, Brewery, Ricemill, Printing & Dyeing, Poultry feed, Sugar, Packaging, Plywood, Building material, Chemical, etc
Get price Send Message
Introduction

biomass boiler
Capacity: 0.1t/h-50t/h; 100kw-35000kw; 10hp-3000hp
Available fuel: biomass, wood, pellets, woodchips, wood waset, husk, sawdust, coconuts, palm shells

Whole System Biomass Boiler

Whole boiler system including boiler proper, combustion grate device, coal-feeder, economizer, dust collector, slag remover, deaerator, etc. Offer kinds of combustion grate device: Chain grate, Travelling grate, Reciprocating step grate, Dumping grate, Fixed grate...

Plan A  DZL biomass wood boiler

DZL series package biomass boilers, are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface,while the drum and the water walls on both sides from a radiation heating surface in the furnace.

DZL biomass boilerbiomass steam boiler

Plan B  Vertical biomass wood boiler

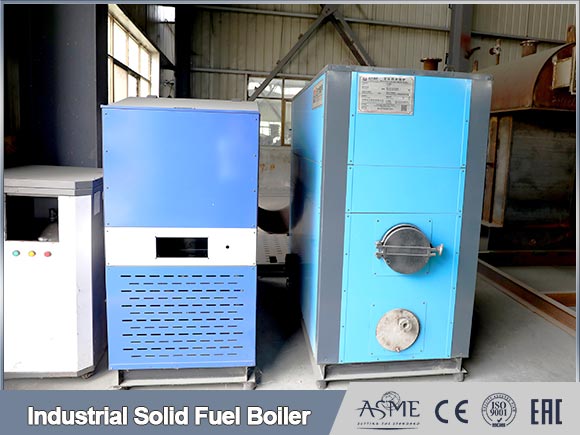

LSG series  biomass steam boiler is vertical type structure with small steam capacity. The combustion equipment is moving grate. The boiler uses the general combustion technique. Coal or biomass fuel is fed by workers manually. Advantages: Quick steam output. Easy installation & operation. Lower fuel consump cost. High thermal efficiency.

vertical biomass boiler, chain grate biomass boiler, biomass steam boilervertical wood biomass boiler

Plan C  DZH Manual biomass wood boiler

DZH Manual type biomass boiler, equipped with fixed grate, water-fire tube three return boiler, radiation heat surface in furnace water wall and stove sides. convection heat surface in furnace flanks and threaded tube.

DZH biomass boiler4ton manual dzh boiler

Plan D SZL water tube biomass wood boiler

Our company SZL type water tube boiler, "A" series & "D" series, adopt membrane water wall constructure, wide biomass fuel adaptability, high technology, environmental and energy-saving. we will help you choose one best-suitable boiler for your project.

---"D" series, SZL double drums offset furnace sturcture, package boiler capacity in 2ton-10ton.

---"A" series, double-drum A type layout, water tube assembly chain grate boiler, suitable for 10ton/12ton/15ton/20ton.

water tube coal boiler10ton biomass water tube boiler

You may like

biomass/wood thermal oil boiler  vertical oil heater boiler


coal thermal oil boiler
vertical wood thermal oil boiler

Why Choose Us ?

1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.

2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.

3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.

4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.

Global Boiler Service

1. Offer catalogue, various boiler model for choose, inquire one you prefer.

2. Technical discussion on boiler system solution for your company use.

3. Warmly welcome all customers come to visit the production base

4. Trustable after sale service, for boiler installation, training operators.

5. Whole life service for boiler consult, contact us whenever.

6. We are one of the leading enterprises which first obtained the national boiler manufacturing license in China. Until 2019, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !

Yuanda Boiler Factory

Parameter
SZL Series Steam Boiler Technical Parameter Table
Model Rated capacity(t/h) Rated pressure (Mpa) Rated steam temperature(℃) feed temperature(℃) Thermal efficiency(%) Boiler water volume(m³) Exhaust temperation(℃) Fuel comsumption(Kg/h) max transportation weigh(t)
SZL2 2 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >83.13 6.76 130.7 385.8 22
SZL4 4 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.23 5.1 142 807 29
SZL6 6 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.81 8.4 142 1209 34
SZL8 8 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >85.02 9.4 149.1 1563.9 40.5
SZL10 10 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.2 8.35 152.7 2149.3 24
SZL12 12 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.56 12.8 148.7 2399.7 37
SZL15 15 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.29 15.2 149.8 2568.4 24.7
SZL20 20 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.8 15.5 147.4 4266.9 26
Note: Parameter is for reference only, if any changes should follow the factory technical data.
