100kw-35000kw Heater Boiler Price
- Heating Capacity:100kw-35000kw (35MW)
- Heat Medium:Water, Thermic Oil
- Power:electric, gas, lpg, diesel, coal, biomass, wood, husk, sawdust, briquette
- Working Pressure:0.5Mpa-3.8Mpa; 5bar-38bar
- Heating Temperature:0-380°C
100KW-35000KW Steam Boiler or Hot Water Boiler or Thermal Oil Boiler
Remind: capacity conversion 700kw=0.7mw=1ton=60,0000kcal=240,0000btu=64hp

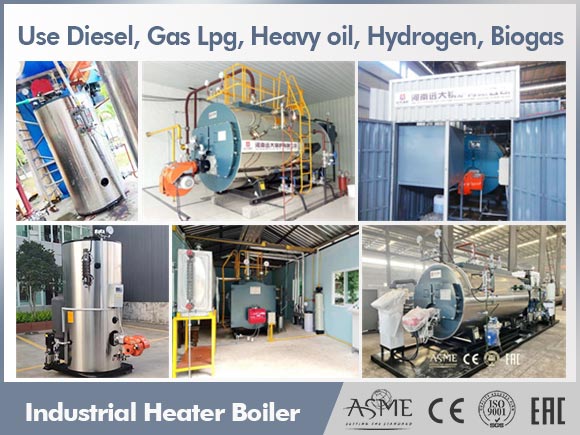

Boiler Use gas/lpg/diesel 100kw-35000kw
1) Small capacity in 100kw-700kw vertical gas oil hot water boiler, work with gas/oil burner, small occupy area, easy install & operate.
2) 350kw-35000kw ( Largest is 35mw) horizontal type gas oil boiler, including fire tube boiler and water tube boiler, automatic running & packaged boiler efficiency up to 99.5%, three/four pass structure deisgn, energy saving & low fuel consumption cost.

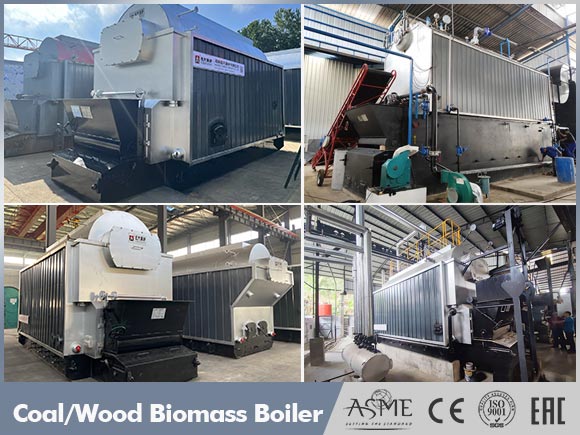

Boiler Use Coal | Wood | Biomass 100kw-35000kw
1) Small capacity in 100kw-1400kw, adopt vertical body design, simple sturcture, small occupy, easy install/operate.

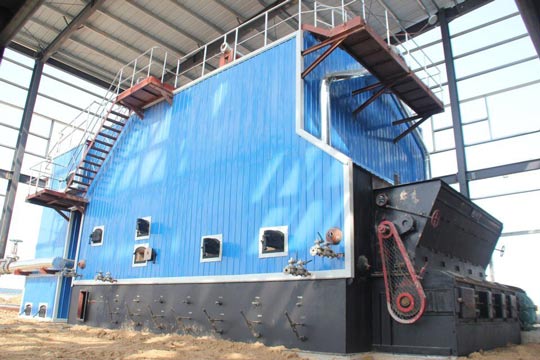

2) 700kw-35000kw (largest is 35mw) horizontal type boiler, including DZL DZH SZL chain grate boiler, travelling grate boiler, reciprocating grate boiler. Availble for all kinds solid waste, such husk, bagass, shells, palm fibre, coconuts, peanute, woodchips, pellets, briquette, wood, coal, charcoal, etc.

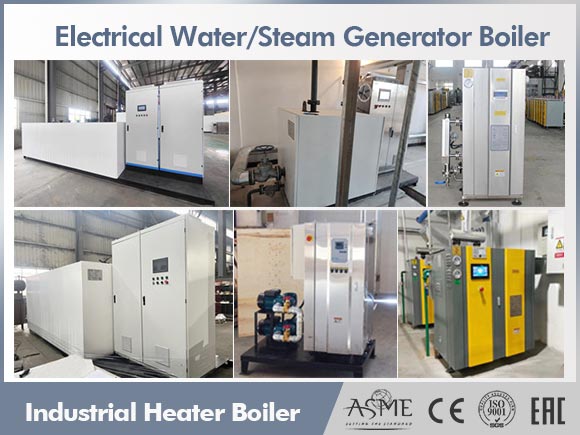

Boiler Use Electricity 100kw-5000kw
1) Small capacity in 30kw-700kw electric boiler, it's easy movable machine, lower cost boiler.
2) 700kw-5000kw (5mw) electric boiler, clean energy power and full-automtic operation.

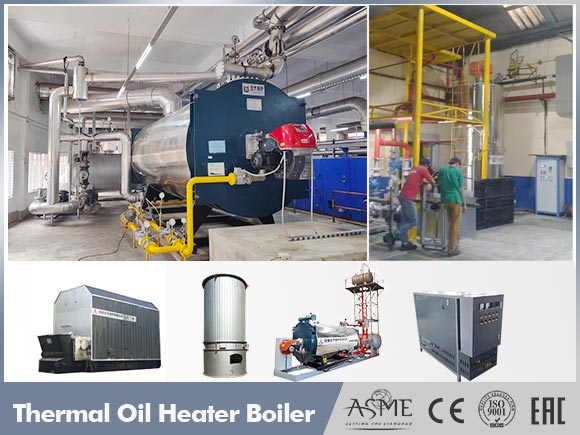

Appearance of Gas/Diesel thermal oil heater boiler, Coal/Wood thermal oil boiler
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
Inquiry Leave Message
1. Any plans to repalce old boiler ? New factory need boiler ? expansion or new business
2. Which industry business need boilers ? lets' talk about some details
3. Are there some technical requirments ? then we could offer quotation accordingly
4. Do you need our suggestion on how to choose a suitable boiler ? waiting for your message
Inquiry Email Address: shirley@yuanda-boiler.com
Calorific value, cost comparison analysis of various fuels (Refer to 1 ton steam boiler) | |||||||
---|---|---|---|---|---|---|---|
Fuel | Fuel density(kg/Nm3) | Calorific value(KJ/kg) or (KJ/Nm3) | Boiler eFficiency(%) | Emission | Consumption (kg/h) | ||
CO2 | SO2 | NOx | |||||
AII coal | 1200 | 17396 | 80 | 955 | 11.8 | 4.3 | 200 |
Light oil | 850 | 42875 | 95 | 818 | 14.2 | 4 | 66.1 |
Natural gas | 0.741 | 35590 | 96 | 420 | / | 0.5 | 70.1 |
Wood chips | 130 | 13101 | 88 | 730 | / | 1.1 | 180 |
Rice husk | 120 | 12689 | 87 | 685 | 0.2 | 1.3 | 200 |
Straw | 80-100 (corn/straw) | 16697 (corn/straw) | 90 | 765 | 0.1 | 1.3 | 160 |
Wood pellets | 750 | 18392 | 90 | 950 | / | 1 | 160 |
1.Special proposal is available according to different place's different encironmental requirements; 2.Burning fuel's heat value/chemincal component different, parameter different; 3.Boiler technology is keep updating, if there is any update in the future, no special imform. |
|||||||
