Thermic Fluid Heater - Thermal Oil Heater Boiler

Qualified by ASME, CE, ISO, EAC, DOSH, CRN, TUV, BUV. Global Sale & Service Cover 135 Countries.

Application:  Industries in Textile, Plywood Veneer, Food, Chemical, Plastics, Rubber, Heating Liquid Tanks, etc.

Aavailable fuel: Gas, Diesel, Heavy oil, Coal, Biomass, Electrical

Usage: Heating oil system, For Textile, Food, Chemical, Plastics, Rubber, Paper, Plywood, Building materials, Synthetic fiber, etc.

Description: Thermic fluid heater boiler, use transfer oil as medium, it is forced circulation oil system, heating oil under specific pressure, adopts horizontal chamber combustion three-coil structure, and its body is composed of outer oil, middle oil, inner oil and rear oil.

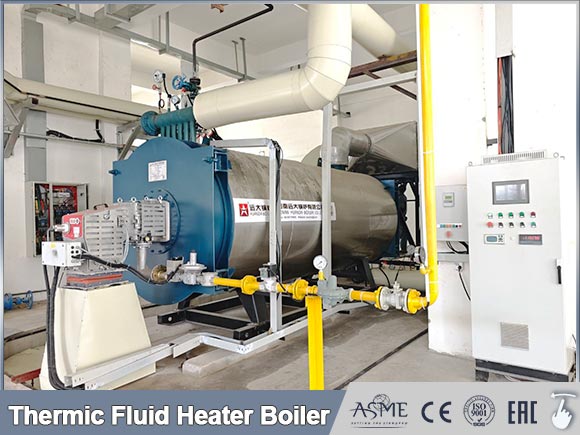

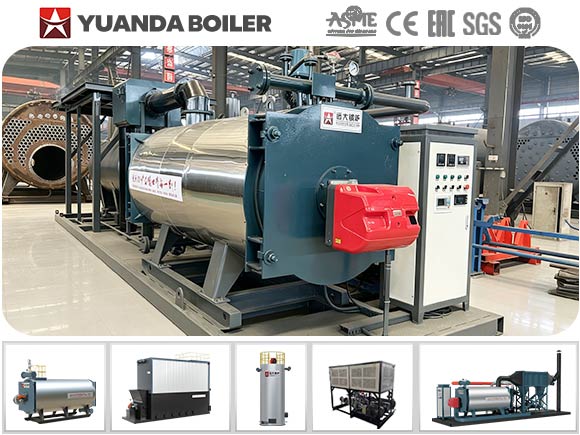

Option ① Gas/Oil power thermic fluid heater

YYQW Diesel/Gas Thermal oil boiler is a kind of boiler which uses transfer oil as medium, adopts horizontal chamber combustion three-coil structure, and its body is composed of outer oil, middle oil, inner oil and rear oil.

---Feeding tansfer oil into boiler through oil-gas seperator powered by oil-pump.

---Full-oil boiler, cold oil will stay forced circulating for 6-8Hours, sametime exhaust the gas in oil.

---Then running thermal oil boiler, deliver the heat between heating equipment and boiler. It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

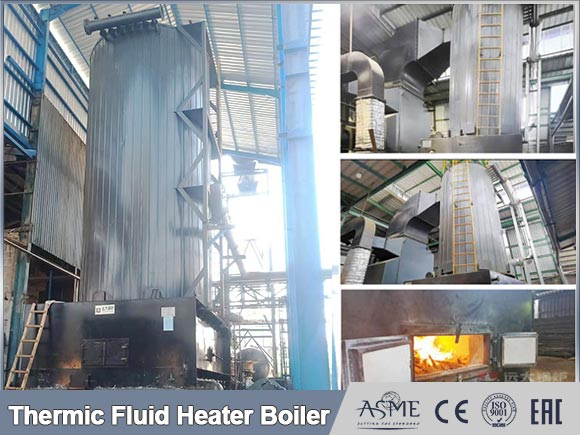

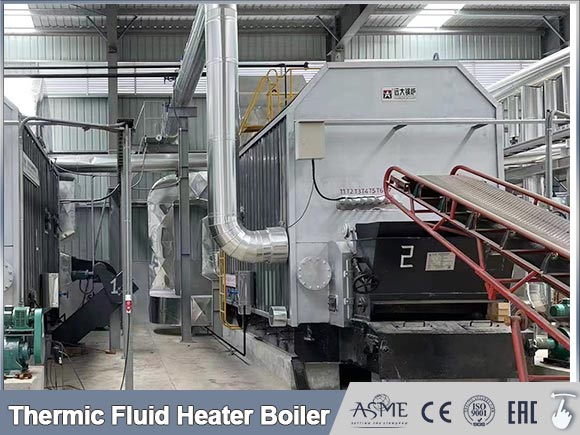

Option ② Wood/Coal/Biomass thermic fluid heater

Coal/Biomass thermal oil boiler, adopts square oil horizontal structure, chain grate automatic fuel feeding, coal burning in furnace, realize high-temp oil output for industrial production use.

Process: Use thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace. It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

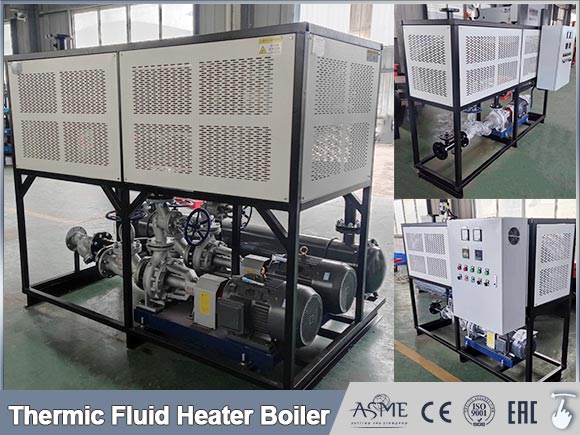

Option ③ Electric thermic fluid heater

Electric oil heater boiler is a particular kind of forced circulation industrial heater that uses electric as power, and takes thermal oil as its medium. The pump in the system circulates thermal oil to heat using equipment, releasing heat there and back to the heater for reheat again.It can be made as normal type or explosion proof type according to different safety level requirement.

Looking For A Reliable Boiler Manufacturer?

1. Yuanda Boiler, established in 1956, with 70 years of boiler manufacturing experience and over 18 years of international export experience. We specialize in industrial boilers, thermal oil heaters, hot water boilers, steam boilers, biomass boilers and waste incineration equipment for global industrial projects.

2. Our products have been exported to more than 135 countries and regions, serving customers in textile factories, food processing plants, paper mills, hospitals, chemical industries, palm oil mills, plywood factories, laundry plants, pharmaceutical factories and many other industries worldwide.

3. With professional production lines, strict quality control system and international certifications including ASME, CE, ISO, EAC, DOSH, TUV and BUV, we provide reliable boiler equipment that complies with international standards and project requirements.

Professional Boiler Solution Support

Our experienced engineer team can provide:

1. Boiler model selection according to your project

2. Steam capacity and fuel consumption calculation

3. Boiler room layout suggestions

4. Technical drawings and datasheets

5. Chimney and auxiliary equipment recommendation

6. Container loading and shipping arrangement

7. Overseas installation and commissioning guidance

8. After-sales technical support

Note: OEM and customized boiler manufacturing services are available.
